In this section, you will find the specifications for centrifugal electric pumps in the Pianeta Acqua catalogue.
If you wish to receive more detailed information in person, arrange an appointment or receive a no obligation quote, use the contact details at the bottom of the page or go directly to the company headquarters in Cento, in the province of Ferrara.

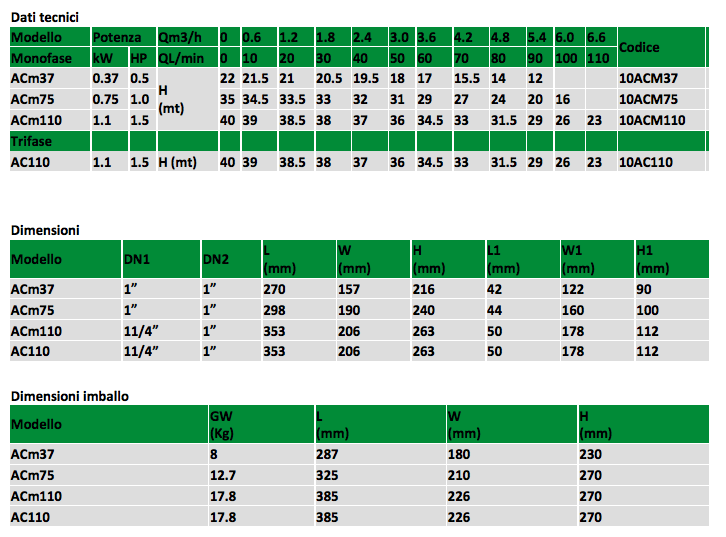

ACM MONOGIRANT MODEL

divider
Centrifugal electric pumps can be used to transfer clean water or chemically non-aggressive liquids. Like peripheral electric pumps, they are used in the domestic and industrial sectors, in garden irrigation, in the transfer of water over medium distances, in air-conditioning and refrigeration systems.
These are the detailed specifications of centrifugal electric pumps:
  • cast iron pump body;
  • impeller in AISI 304 stainless steel;
  • aisi 304 tree;
  • max. temperature liquid: 60 ° c;
  • manometric suction height up to: 8m.
These are the engine specifications
  • single-phase with thermal protection inserted in the winding;
  • insulation: class F;
  • protection class: ip 44;
  • maximum ambient temperature: 40 ° C.

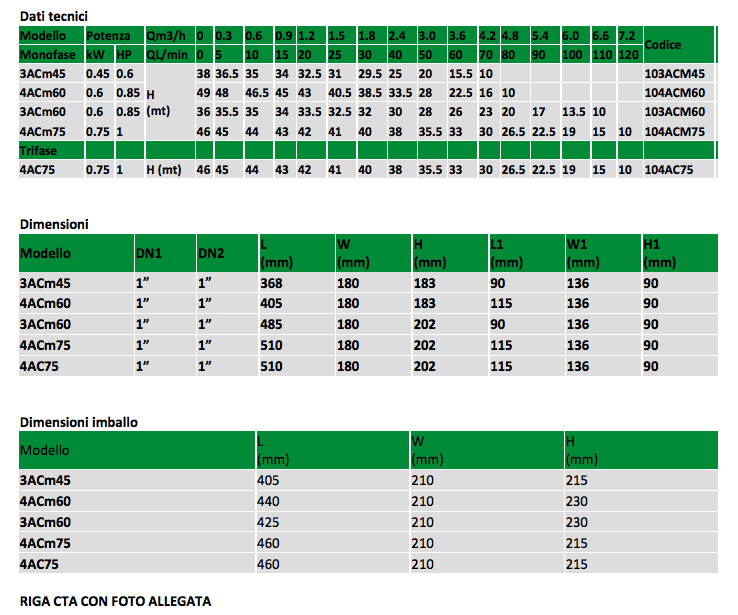

MODEL WITH SELF-ADHESIVE MULTIGIRANT FUNCTION

divider
Centrifugal electric pumps with self-priming function can be used to transfer clean and non-hazardous liquids, even in the presence of air mixed with the aspirated liquid. Thanks to their silence, they are particularly suitable for domestic use, especially for pressurisation, combined with the classic tank or the most sophisticated inverters.

Pump characteristics:
  • cast iron body;
  • impeller in NORYL;
  • aisi 304 tree;
  • maximum liquid temperature: 40 ° c;
  • manometric suction height up to: 8m.
Engine features:
  • single-phase motor with thermal protection inserted in the winding;
  • insulation: class F;
  • protection class: IP 44;
  • maximum ambient temperature: 40 ° C.

Fill out the form for further information on the types of centrifugal electric pumps
